LJ-MX-1201/510*350
LEJIA
LJ-1201

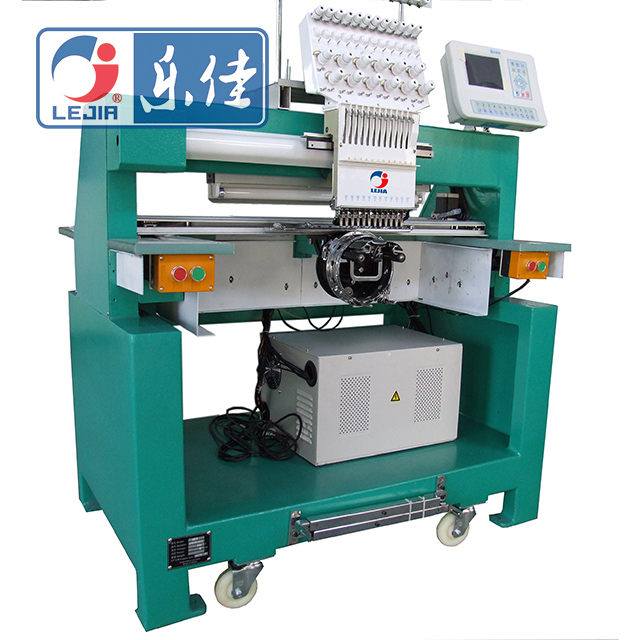

Porduct Information Of Embroidery Machine
Product type | Flat Embroidery Machine |
Certification | ISO9001 CE |
Head number | 1 Heads |
Needle number | 12 Needles |
Head interval | 0mm |
Embroidery area | 510*360 mm |
Operation | Dahao Computerized, 285A |
Main motor | 70SF MOTOR |
Max speed | 1200RPM |
Attached device | NO |
Embroidery machine series
PRODUCTION PROCESS
PRODUCTION PACKING
Needle Number: 15(6、9、12、15 needle optional)
Head Number: 1(1-10head optional)
Head Distance: 0 mm (Customized, 300/330/ 350/ 400, etc.)
Embroidery Area:X510Y350mm (Customized, X axis depends on the head distance, single/double/multiple alternate available, Y axis 450/500/680/750/800/900/1000/1200/1300/1500/1800 optional or customized )
Max Speed: 1200RPM
Stitch Length/ Memory Capacity 0.1-12.7mm/1 billion
Power Input: 380 V (220/380V optional)
Auto head selection: Yes (Customized)
Computer: DAHAO 285/8 inch screen
Main Motor: 1.0KW DAHAO servo motor
Color Change Option: Screw Rod(SR) Color Change(cam color change optional)
Upper Thread Holding: new high performance solenoid upper thread holding device
Tension Base: new tension base designed by Lejia
Head Structure: Double cam double lever structure, press foot and needle bar drive independently (normal head/single cam double lever/double cam double lever optional according to needs)
Jump mode: motor controlled(solenoid and motor optional)
Rotary Hook:original Koben rotary hook 1.6 times(Koben/Hirose/K branch optional, 1.0/1.6/2.0 times optional)
Oiling system: Automatic oiling system
Languages: Chinese, English, Spanish, Turkish, Russian, French, Portuguese, Arabic and Thai
Porduct Information Of Embroidery Machine
Product type | Flat Embroidery Machine |
Certification | ISO9001 CE |
Head number | 1 Heads |
Needle number | 12 Needles |
Head interval | 0mm |
Embroidery area | 510*360 mm |
Operation | Dahao Computerized, 285A |
Main motor | 70SF MOTOR |
Max speed | 1200RPM |
Attached device | NO |
Embroidery machine series
PRODUCTION PROCESS
PRODUCTION PACKING
Needle Number: 15(6、9、12、15 needle optional)
Head Number: 1(1-10head optional)
Head Distance: 0 mm (Customized, 300/330/ 350/ 400, etc.)
Embroidery Area:X510Y350mm (Customized, X axis depends on the head distance, single/double/multiple alternate available, Y axis 450/500/680/750/800/900/1000/1200/1300/1500/1800 optional or customized )
Max Speed: 1200RPM
Stitch Length/ Memory Capacity 0.1-12.7mm/1 billion
Power Input: 380 V (220/380V optional)
Auto head selection: Yes (Customized)
Computer: DAHAO 285/8 inch screen
Main Motor: 1.0KW DAHAO servo motor
Color Change Option: Screw Rod(SR) Color Change(cam color change optional)
Upper Thread Holding: new high performance solenoid upper thread holding device
Tension Base: new tension base designed by Lejia
Head Structure: Double cam double lever structure, press foot and needle bar drive independently (normal head/single cam double lever/double cam double lever optional according to needs)
Jump mode: motor controlled(solenoid and motor optional)
Rotary Hook:original Koben rotary hook 1.6 times(Koben/Hirose/K branch optional, 1.0/1.6/2.0 times optional)
Oiling system: Automatic oiling system
Languages: Chinese, English, Spanish, Turkish, Russian, French, Portuguese, Arabic and Thai
Needle Number: 12(6、9、12、15 needle optional)
Head Number: 1(1-10head optional)
Head Distance: 0 mm (Customized, 300/330/ 350/ 400, etc.)
Embroidery Area:X510Y350mm (Customized, X axis depends on the head distance, single/double/multiple alternate available, Y axis 450/500/680/750/800/900/1000/1200/1300/1500/1800 optional or customized )
Max Speed: 1200RPM
Stitch Length/ Memory Capacity 0.1-12.7mm/1 billion
Power Input: 380 V (220/380V optional)
Auto head selection: Yes (Customized)
Computer: DAHAO 285/8 inch screen
Main Motor: 1.0KW DAHAO servo motor
Color Change Option: Screw Rod(SR) Color Change(cam color change optional)
Upper Thread Holding: new high performance solenoid upper thread holding device
Tension Base: new tension base designed by Lejia
Head Structure: Double cam double lever structure, press foot and needle bar drive independently (normal head/single cam double lever/double cam double lever optional according to needs)
Jump mode: motor controlled(solenoid and motor optional)
Rotary Hook:original Koben rotary hook 1.6 times(Koben/Hirose/K branch optional, 1.0/1.6/2.0 times optional)
Oiling system: Automatic oiling system
Languages: Chinese, English, Spanish, Turkish, Russian, French, Portuguese, Arabic and Thai
Needle Number: 12(6、9、12、15 needle optional)
Head Number: 1(1-10head optional)
Head Distance: 0 mm (Customized, 300/330/ 350/ 400, etc.)
Embroidery Area:X510Y350mm (Customized, X axis depends on the head distance, single/double/multiple alternate available, Y axis 450/500/680/750/800/900/1000/1200/1300/1500/1800 optional or customized )
Max Speed: 1200RPM
Stitch Length/ Memory Capacity 0.1-12.7mm/1 billion
Power Input: 380 V (220/380V optional)
Auto head selection: Yes (Customized)
Computer: DAHAO 285/8 inch screen
Main Motor: 1.0KW DAHAO servo motor
Color Change Option: Screw Rod(SR) Color Change(cam color change optional)
Upper Thread Holding: new high performance solenoid upper thread holding device
Tension Base: new tension base designed by Lejia
Head Structure: Double cam double lever structure, press foot and needle bar drive independently (normal head/single cam double lever/double cam double lever optional according to needs)
Jump mode: motor controlled(solenoid and motor optional)
Rotary Hook:original Koben rotary hook 1.6 times(Koben/Hirose/K branch optional, 1.0/1.6/2.0 times optional)
Oiling system: Automatic oiling system
Languages: Chinese, English, Spanish, Turkish, Russian, French, Portuguese, Arabic and Thai
(single side sequin, double side sequin, single side overlapped sequin and double side overlapped sequin with sequin size from 2mm-22mm).
Easy sewing of all shapes of sequin, like round, heart, square, water drop, diamond, oval, etc. Even on eccentric holed sequin to achieve magic hanging effect.
By excellent combination of beads device and controller system, it works with loose glass beads of 2/2.5mm for embroidery instead of manual embroidery with beads with improvement of work efficiency and it also makes the artistic features of beads embroidery that is more brilliant, colorful and stereoscopic.
With simple structure but remarkable embroidery is the main characteristic of easy cording device. It is just assembled on flat head and makes cording embroidery easily with much lower cost,Steady running of cording works by cord, rope, and sequin / bead string up to 1000 SPM speed.
Lock stitch looping uses lock stitches embroidery without any falling off of thread. And meanwhile, it has the characteristic of chain stitch looping embroidery with strong sense of three-D. Compared with the high cost for chain stitch looping, lock stitch looping has much lower cost, and it also offers various kinds of beautiful embroidery.
By adjustment of clearance for needle bar and rotary hook, it can work with maximum 900D yarn thread, which gives better sense of 3D embroidery.
It embroiders on holes edge after the holes are made by boring knives or needles which installed on flat head. In this way, it has both decent normal embroidery flowers but also delicate hollowed-out flowers that make embroidery more elegant, exquisite and unique.
It’s easy to use for any synthetic fabric or artificial leather (P.U). With precise cutting, it works synchronously with embroidery under intelligent controlling system, and makes gorgeous embroidery.
Hybrid of embroidery and compact laser cutting and engraving largely reduces down time of post embroidery processing and adds unlimited value and charm to the products.
Designed for engraving, layer cutting, boring, patch/applique embroidery on wide range of fabric, leather, mesh, toy, textile.For SME’s embroidery + cutting/engraving. More compact, fast installation, flexible operation, cost saving, and higher earnings.
(automatic lubrication, manual lubrication and spraying lubrication,Optional controllable oiling system (timer type is available ) guarantees lubrication on parts on head and hook , and safeguards the life of parts , minimizing the down time of maintenance.
Bobbin changing is one of the necessary processes of embroidery. Automatic bobbin changing can be finished during embroidering for all the heads which avoids the stop of machines due to the bobbin changing.
When something urgent or unexpected happens, emergency switch can stop the machine quickly.
By controlling picking up of the solenoid from upper thread holding device, it makes holding and loosening of thread which greatly improves the quality of embroidery and trimming, it keeps thread on working status after frequent cutting and increases the productivity largely.
(single side sequin, double side sequin, single side overlapped sequin and double side overlapped sequin with sequin size from 2mm-22mm).
Easy sewing of all shapes of sequin, like round, heart, square, water drop, diamond, oval, etc. Even on eccentric holed sequin to achieve magic hanging effect.
By excellent combination of beads device and controller system, it works with loose glass beads of 2/2.5mm for embroidery instead of manual embroidery with beads with improvement of work efficiency and it also makes the artistic features of beads embroidery that is more brilliant, colorful and stereoscopic.
With simple structure but remarkable embroidery is the main characteristic of easy cording device. It is just assembled on flat head and makes cording embroidery easily with much lower cost,Steady running of cording works by cord, rope, and sequin / bead string up to 1000 SPM speed.
Lock stitch looping uses lock stitches embroidery without any falling off of thread. And meanwhile, it has the characteristic of chain stitch looping embroidery with strong sense of three-D. Compared with the high cost for chain stitch looping, lock stitch looping has much lower cost, and it also offers various kinds of beautiful embroidery.
By adjustment of clearance for needle bar and rotary hook, it can work with maximum 900D yarn thread, which gives better sense of 3D embroidery.
It embroiders on holes edge after the holes are made by boring knives or needles which installed on flat head. In this way, it has both decent normal embroidery flowers but also delicate hollowed-out flowers that make embroidery more elegant, exquisite and unique.
It’s easy to use for any synthetic fabric or artificial leather (P.U). With precise cutting, it works synchronously with embroidery under intelligent controlling system, and makes gorgeous embroidery.
Hybrid of embroidery and compact laser cutting and engraving largely reduces down time of post embroidery processing and adds unlimited value and charm to the products.
Designed for engraving, layer cutting, boring, patch/applique embroidery on wide range of fabric, leather, mesh, toy, textile.For SME’s embroidery + cutting/engraving. More compact, fast installation, flexible operation, cost saving, and higher earnings.
(automatic lubrication, manual lubrication and spraying lubrication,Optional controllable oiling system (timer type is available ) guarantees lubrication on parts on head and hook , and safeguards the life of parts , minimizing the down time of maintenance.
Bobbin changing is one of the necessary processes of embroidery. Automatic bobbin changing can be finished during embroidering for all the heads which avoids the stop of machines due to the bobbin changing.
When something urgent or unexpected happens, emergency switch can stop the machine quickly.
By controlling picking up of the solenoid from upper thread holding device, it makes holding and loosening of thread which greatly improves the quality of embroidery and trimming, it keeps thread on working status after frequent cutting and increases the productivity largely.
Founded in 2002 and located in Zhuji Huandong Industrial Zone,Zhejiang Province, China, Zhejiang Lejia Electrical Machinery Co., Ltd is a Key High-tech Enterprise of National Torch Plan, Zhejiang High-tech Enterprise and Zhuji Industrial Scale Enterprise.
Lejia keeps its own way of innovation and has individually designed, developed and manufactured series of embroidery machines of flat (high speed), double sides, sequins, chenille & chain stitch, taping & cording, tuft and mixed functions etc.
It’s one of the leading enterprise in Embroidery machine industry in China. It covers more than 50,000 square meters, and has more than 200 employees, including 20 senior engineers.
We have a professional embroidery machine manufacturing team which is responsible for R&D,spare parts producing, machine body making and complete machine assembling.
Founded in 2002 and located in Zhuji Huandong Industrial Zone,Zhejiang Province, China, Zhejiang Lejia Electrical Machinery Co., Ltd is a Key High-tech Enterprise of National Torch Plan, Zhejiang High-tech Enterprise and Zhuji Industrial Scale Enterprise.
Lejia keeps its own way of innovation and has individually designed, developed and manufactured series of embroidery machines of flat (high speed), double sides, sequins, chenille & chain stitch, taping & cording, tuft and mixed functions etc.
It’s one of the leading enterprise in Embroidery machine industry in China. It covers more than 50,000 square meters, and has more than 200 employees, including 20 senior engineers.
We have a professional embroidery machine manufacturing team which is responsible for R&D,spare parts producing, machine body making and complete machine assembling.
